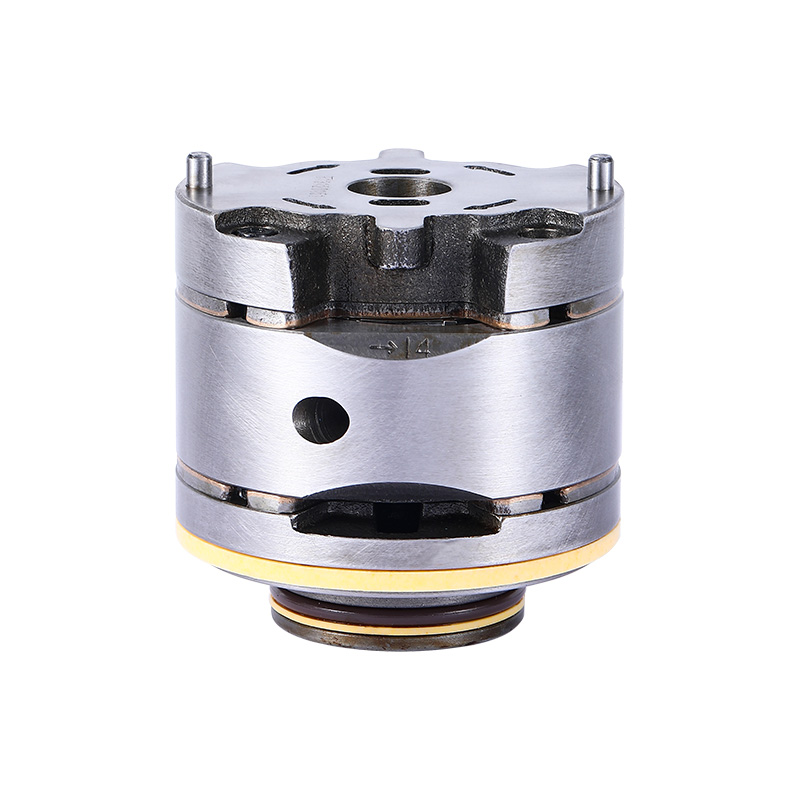

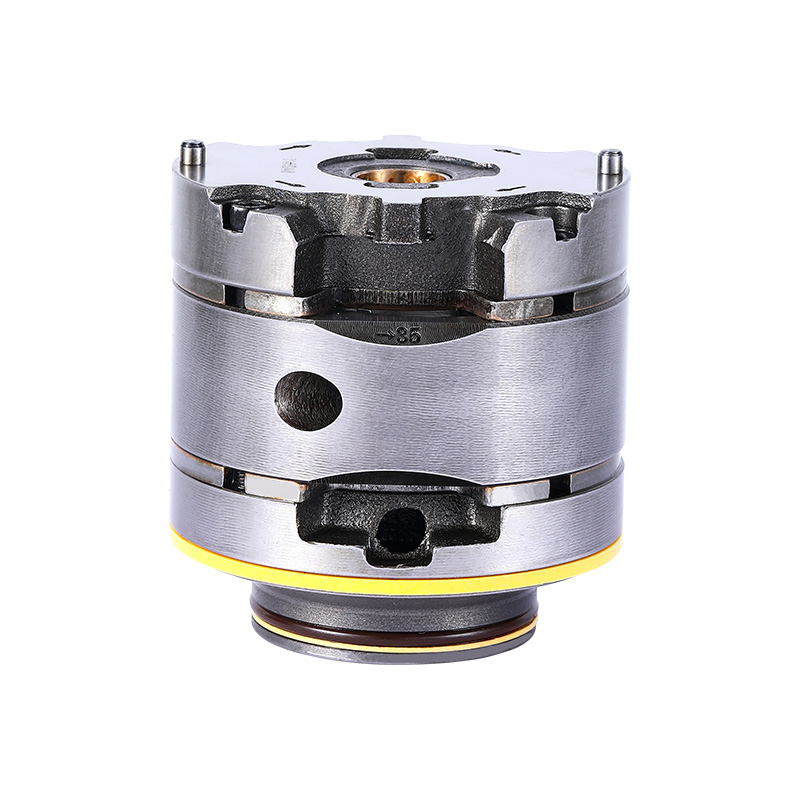

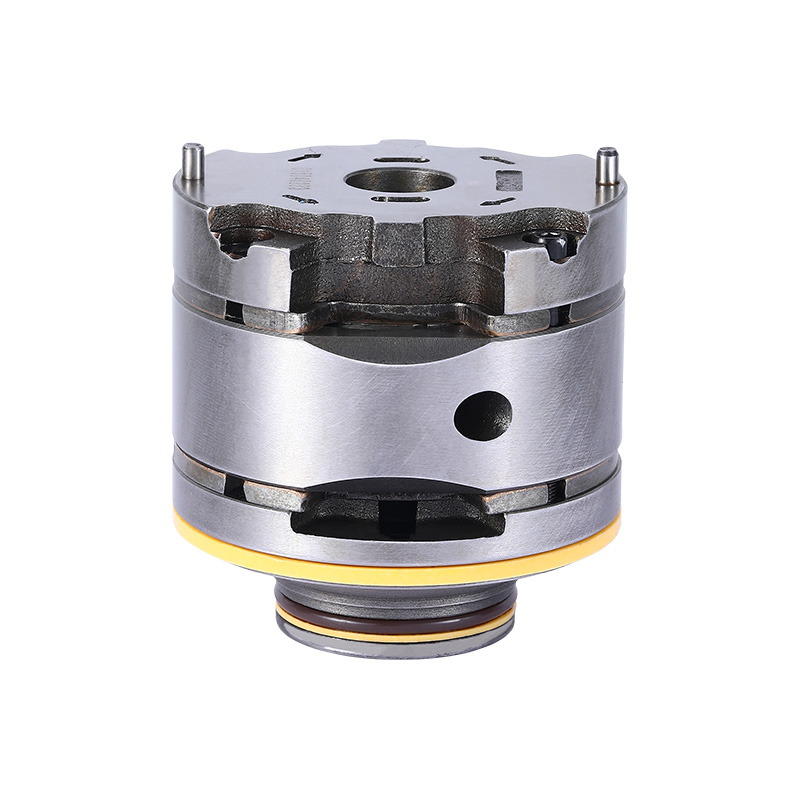

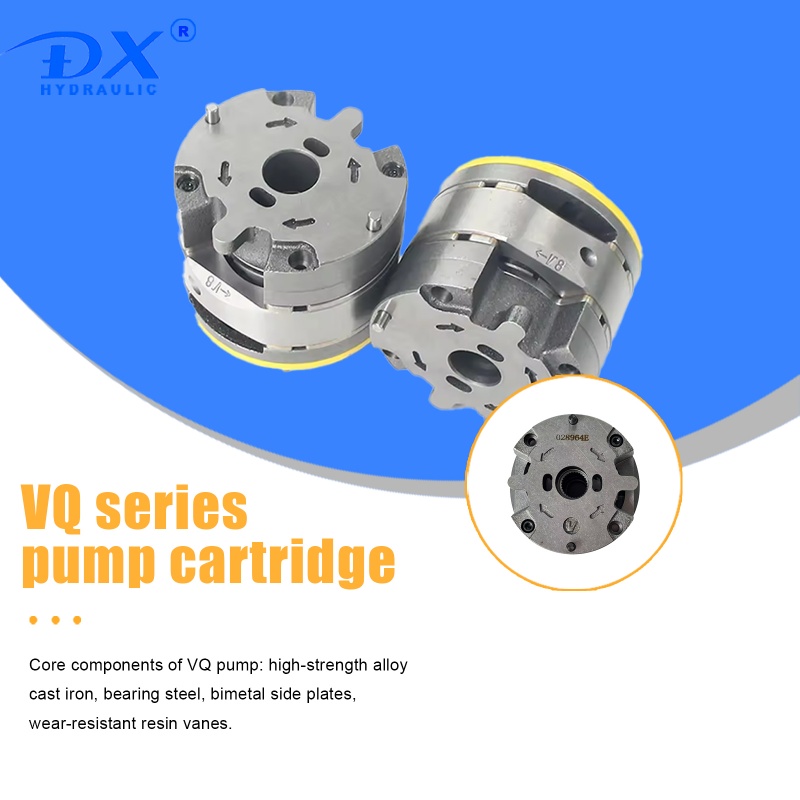

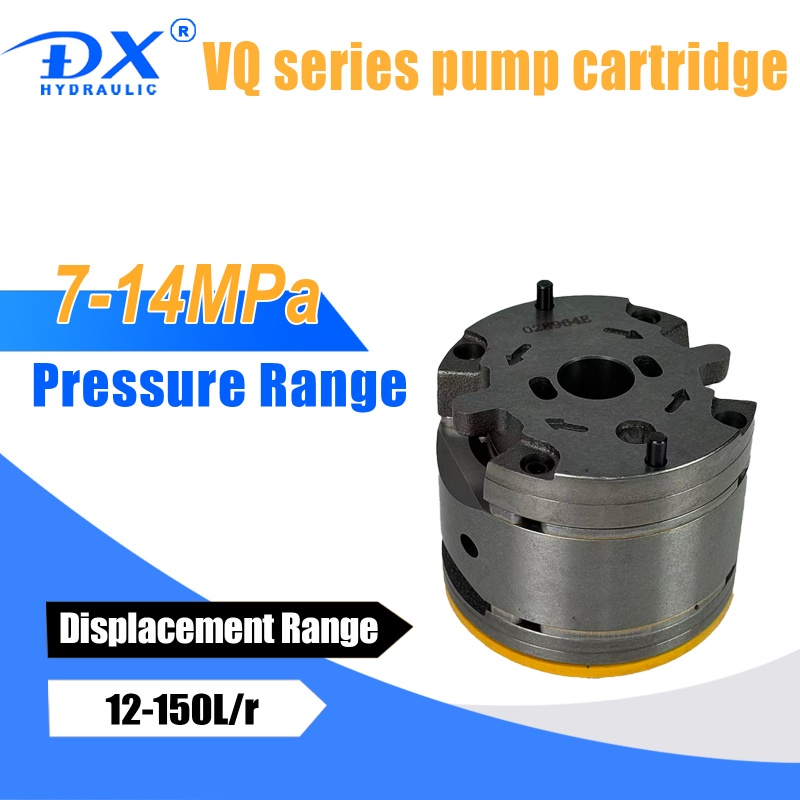

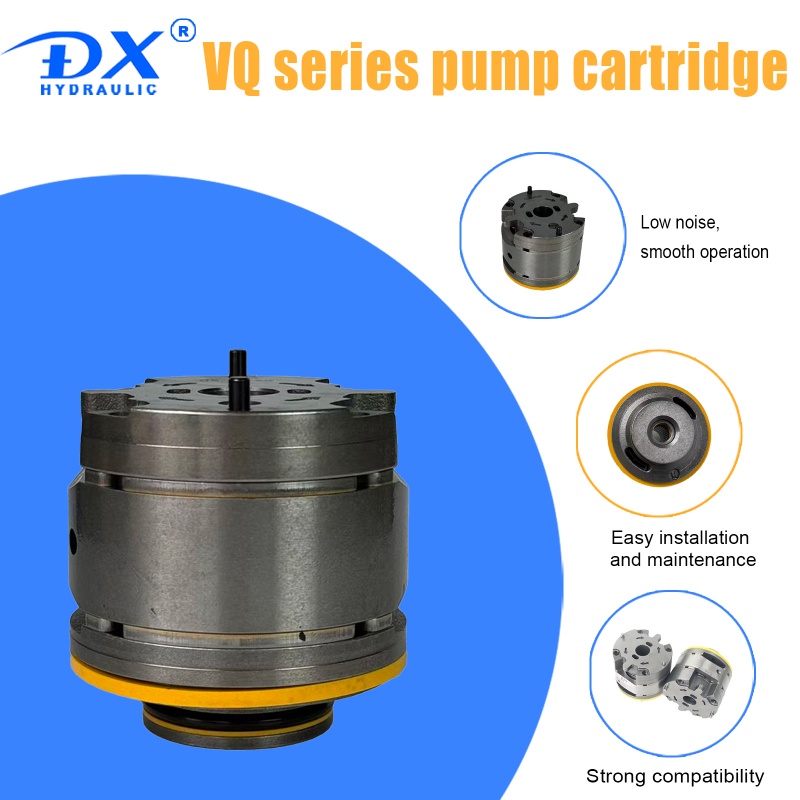

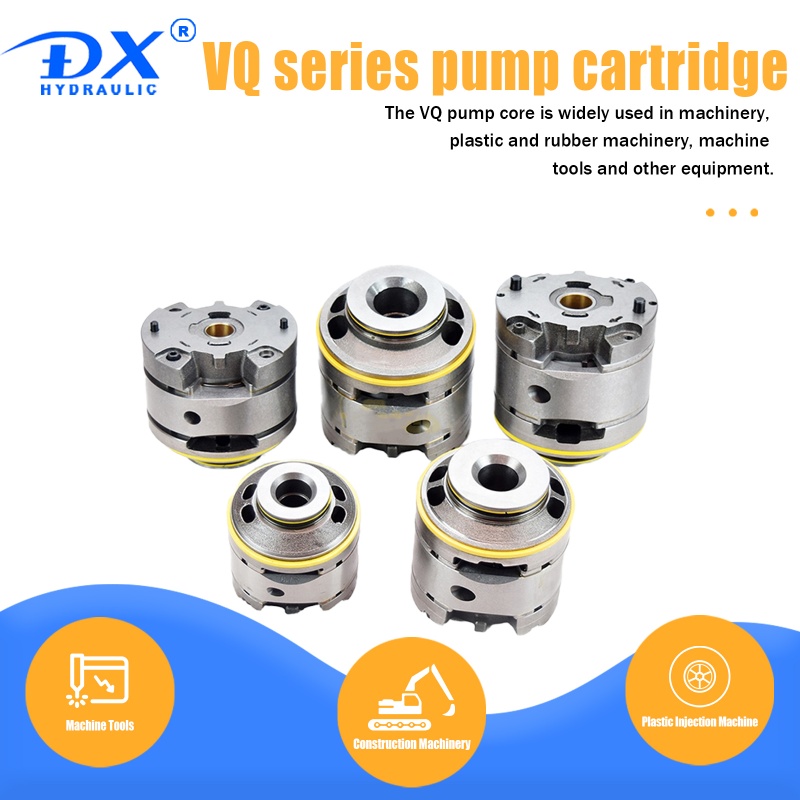

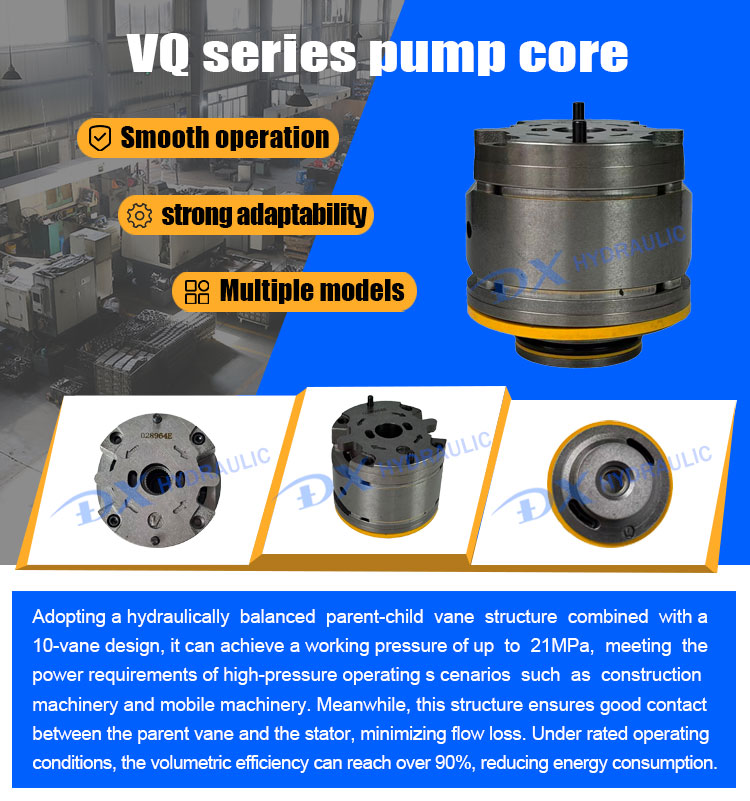

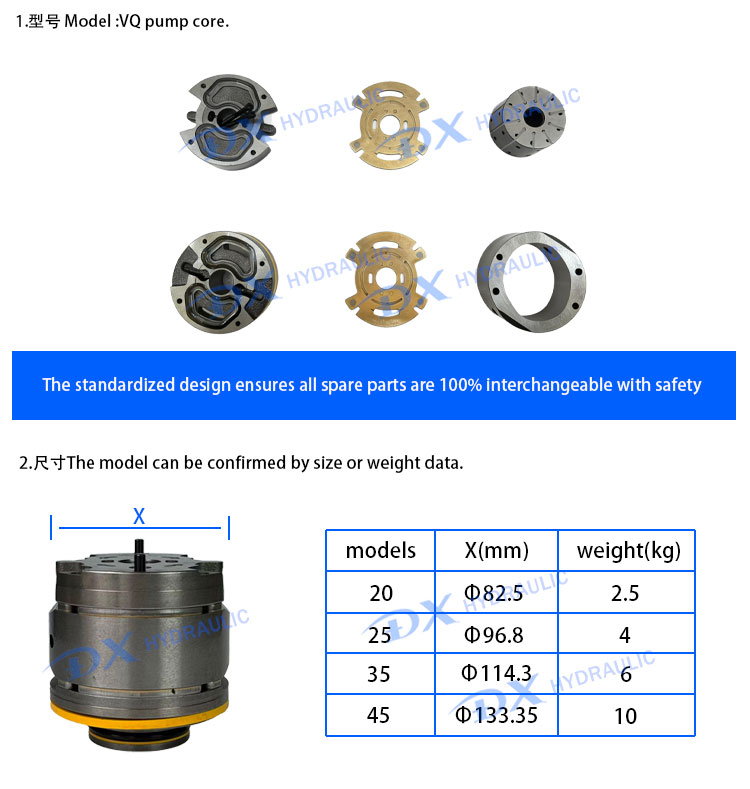

系列号 | A | B | C | D | E | F | G | H | K | M (档圈) |
N (O形圈) |
20V | 82.5 | 82 | 70.8 | 47.2 | 61.8 | 4.75 | 76.2 | 6 | 73.8 | 82.76x76.26x3.5 | 40x3.55 |
25V | 96.8 | 98.5 | 87.2 | 52.2 | 71.6 | 4.75 | 90.5 | 6.5 | 88.19 | 97x91x3.5 | 43.7x3.55 |
35V | 114.3 | 117.7 | 105 | 72.2 | 90.3 | 6.35 | 108 | 6.3 | 103.94 | 144.5x108.5x3.5 | 63.09x3.53 |
45V | 133.3 | 141 | 119 | 80.2 | 106.1 | 6.35 | 127 | 10 | 124 | 133.6x127.6x3.5 | 73x3.55 |
系列号 | 转子内花键参数 | ||||
齿节 | 齿数 | 压力角 | 大径 | 小径 | |
20V | 48/96 | 30 | 45° | 16.617 | 15.56 |
25V | 48/96 | 40 | 45° | 21.9 | 20.86 |
35V | 40/80 | 37 | 45° | 24.38 | 23.1 |
45V | 12/24 | 14 | 30° | 32.59 | 27.6 |
